Two outdoor umbrellas can look identical in a photo and feel completely different to live with. The difference is the moving parts. A tilting outdoor umbrella with a smooth lift and an easy tilt gets adjusted ten times a day. A stiff one stays where you left it, while you drag your chair around the shade instead.
This explainer covers the mechanisms you will meet across the umbrella range: how each lift, tilt and rotation system works, which umbrellas use them, and what to check before you buy. It is written for anyone shading a table, lounge or balcony anywhere in Australia.
Lift, tilt, rotate: the three jobs every mechanism does
Every umbrella mechanism does one of three jobs. The lift raises and lowers the canopy. The tilt angles the canopy so shade lands where the sun actually is, not just straight down. Rotation swings the whole canopy around the pole, so shade can follow the sun through the afternoon without anyone shifting the base.
If you are still deciding between a side pole and a centre pole, start with our cantilever vs centre-pole guide — that choice is about the frame itself. Everything below is about the hardware bolted to it.
Lift mechanisms: push-up, pulley and crank

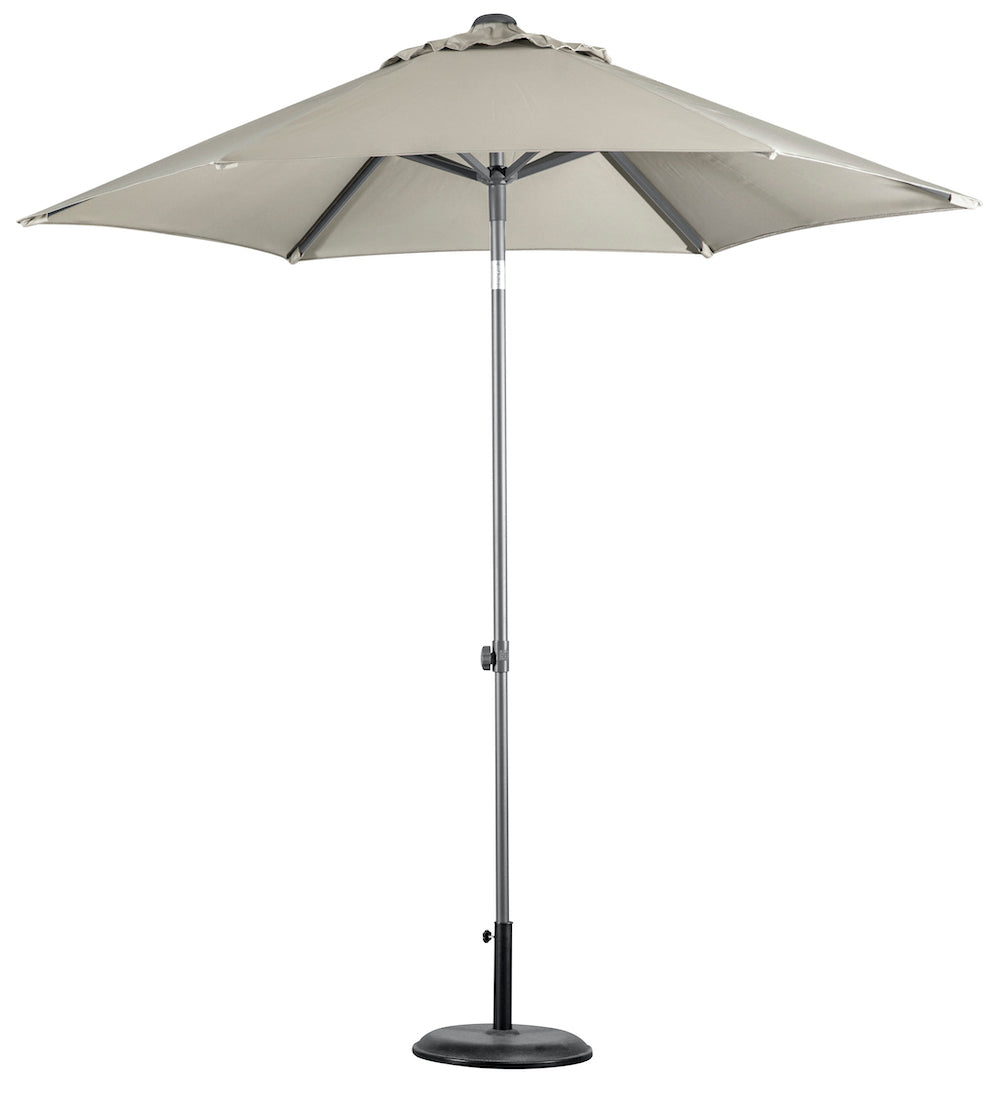

The simplest lift is the push-up. You slide the runner up the pole by hand until it locks, the way a beach umbrella opens. The Harbord Umbrella ($229) works this way. It is height adjustable with a push-up opening and no winder to deal with, and compact enough to move between a balcony and a courtyard. Fewer parts means less to break, which is why small aluminium umbrellas favour it.
Pulley-and-cord lifts are the traditional step up: you haul on a cord to raise the canopy, then secure the cord — on larger centreposts, often with a jam cleat. Crank lifts, also called winders, use a geared handle instead. A few easy turns raise the canopy, which matters once a canopy gets big enough to be heavy work by hand.
How a tilting outdoor umbrella actually tilts
Centrepost umbrellas tilt in two main ways. Push-button tilt puts a button in the upper pole; press it and the head folds over to its set angle. The Rio Umbrella ($295) pairs a crank lift with a push-button tilt, so you wind it open and nudge the head over as the sun drops.
Collar tilt is the more refined version. On the Fairlight Umbrella ($562), you rotate a collar on the winder housing and the canopy tilts anywhere from 0 to 30 degrees, without you getting out of your chair. Because the angle is variable rather than fixed, you can chase a low western sun in small steps.
Cantilever umbrellas tilt differently again. With the canopy hanging from an arm, many rely on a grip-style lever that unlocks the canopy and swings it over. More on those below, where rotation joins in.
Rotation: shade that follows the sun
Rotation is the cantilever's speciality. The Amalfi 3x3m Cantilever Umbrella ($1,299) shows the classic pairing: a pistol-grip tilt swings the canopy from side to side, and a floor pedal turns the whole umbrella through 360 degrees. Press the pedal, walk the canopy around to its new position, and let it lock back in.
Larger cantilevers give each job its own control. The Savannah 3.8m Octagonal Umbrella ($1,899) opens on a crank lift, sets its angle with a press-button tilt lock and rotates 360 degrees on a foot lock — three separate mechanisms on one frame. That is the pattern at the premium end of the range.
Mechanisms at a glance
| Mechanism | What it does | Watch out for |
|---|---|---|
| Push-up lift | Raise the runner by hand until it locks | Heavy going on large canopies |
| Pulley and cord | Cord raises the canopy; a cleat holds it | Cords fray — check and secure them |
| Crank (winder) lift | Geared handle opens the canopy with little effort | Never force a stiff handle |
| Push-button tilt | Head folds over to a set angle | Usually one fixed angle |
| Collar tilt | Variable tilt from the winder housing | Straighten before closing |
| Pistol-grip tilt | Lever swings a cantilever canopy over | Lock it before letting go |
| Foot pedal / foot lock | Rotates a cantilever through 360 degrees | Keep the pedal area clear of pots and toys |
Wind: the part Australia adds to the manual
Australian afternoons are hard on umbrella hardware. Perth's Fremantle Doctor, Sydney's southerly buster and Melbourne's blustery changes all tend to arrive in the very hours the umbrella is up and angled.
Two habits protect the mechanisms. First, never leave a canopy tilted as wind rises: an angled canopy catches gusts unevenly and levers against the tilt joint, its weakest point. Straighten it, then close it. Second, close and secure any umbrella in strong wind — the Amalfi's product page says it plainly: do not use the umbrella in windy conditions.
Near the coast, salt slowly stiffens winders and tilt joints. An occasional rinse with fresh water keeps the moving parts moving, and a cover keeps grit out of the housings between uses.
Umbrella mechanisms — frequently asked questions
What is the difference between a crank umbrella and a push-up umbrella?
A crank umbrella opens with a geared winding handle, while a push-up umbrella is raised by hand until the runner locks. Cranks suit bigger, heavier canopies because the gearing does the lifting; push-up suits smaller umbrellas, where fewer parts mean less to go wrong.
Can I leave a tilting outdoor umbrella tilted in the wind?
No — straighten the canopy and close the umbrella whenever wind picks up. A tilted canopy presents an angled face to gusts and loads the tilt joint unevenly, which is the fastest way to bend a rib or strip the mechanism.
Why has my umbrella crank become hard to turn?
A stiff crank usually means fabric or cord has snagged in the runner, or salt and grit have worked into the housing. Stop winding rather than forcing it, check nothing is caught, and rinse the mechanism with fresh water before trying again.
Do all cantilever umbrellas rotate 360 degrees?
No — rotation is a model-specific feature, not a given. Look for a foot pedal or foot lock on the product page; without one, redirecting the shade means shuffling the entire base and ballast.
